Panasonic Lumix DC-S1RII + Sigma 28-70mm f2.8 DG DN (C) L-Mount

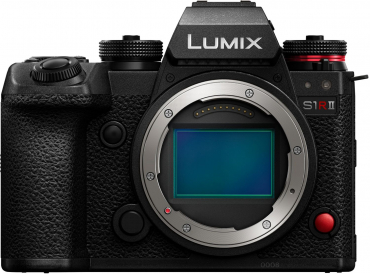

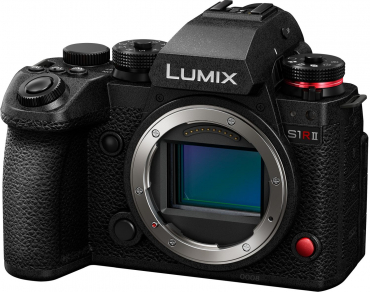

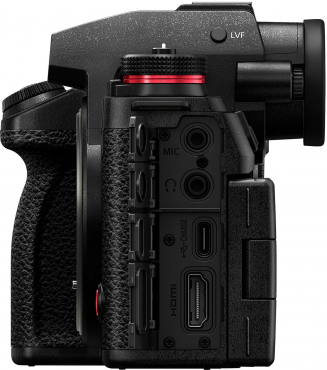

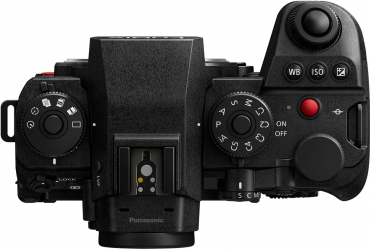

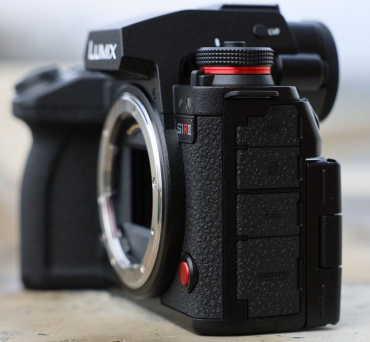

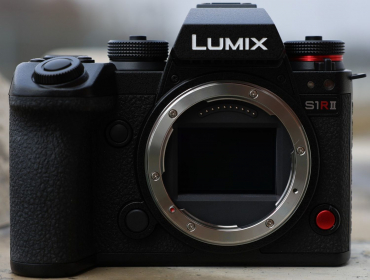

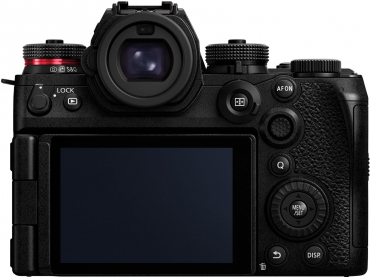

Panasonic Lumix DC-S1RII Body

The LUMIX S1RII features a new 44.3MP BSI CMOS sensor and a high-performance processor with L2 technology to deliver stunning photos and videos with LUMIX's prized natural color reproduction. The High-Res handheld mode even enables photos up to 177MP

, and with its revolutionary video performance, it is the first LUMIX camera to realize 8K video, expanding the possibilities. The popular Open Gate function has been improved to record in 6.4K and even up to 8.1K with a future firmware update. It also supports internal recording of 5.8K Apple ProRes RAW HQ / ProRes RAW to enable high-quality video with minimal setup.

Phase Hybrid AF with real-time detection, now with AI tracking, quickly and accurately recognizes human eyes and faces and smoothly follows a subject's movements. With high-speed continuous shooting of up to 40 fps and AF tracking, dynamic subjects can be captured precisely.

The widely acclaimed image stabilization achieves an internal compensation of 8.0 f-stops and a correction of 7.0 f-stops in the telephoto range with Dual I.S. The video image stabilization offers a new Cropless E.I.S. correction, which reduces

distortion

at

long distances

.

The highest image quality from LUMIX to date brings details to life

New 44.3MP sensor

• Natural, high-resolution rendering
• Natural color reproduction
• High dynamic range (14 stops V-Log/V-Gamut)*
• Highly sensitive images with low noise
  *Dynamic range expansion (log) ON : 14 stops. Dynamic range extension (logarithmic) OFF: 13 f-stops

Latest processor with L2 technology

• Maximizes the performance of high-resolution sensors through high-speed processing
• Achieves both high resolution and

low noise

• .

Achieves

• both

high

• resolution and low noise
• Standard ISO 80-51200 / Extended ISO 40-102400

First-class autofocus with the latest AI technology - Phase Hybrid AF

High-resolution cameras require extremely precise focus.
The LUMIX S1RII features an advanced phase-
hybrid autofocus, which is characterized by high speed, precision
and high tracking performance.

• Phase-detection AF system with 779 metering points
• Enhanced real-time detection with advanced AI technology
• Improved performance in tracking AF mode

Recognizes, identifies and focuses on a wide range of subjects

• Human - eye/face/body, eye/face
• Animal - body, eye/body
• Car - total subject, main part
• Motorcycle/bicycle - total subject, helmet
• Train - first car, main part
• Airplane - total, nose

Image stabilization for photos and videos

Night shots, Zoom shots, walking shots - all blur-free.

Sharp photos

• 8.0 stops 5-axis B.I.S.* - Provides powerful compensation even at slow shutter speeds.
• 7.0 stops 5-axis Dual I.S. - Provides powerful compensation even at telephoto range where B.I.S. drops off

*8.0-stop; Periphery: 7.0-stop. Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=60mm when S-R2060 is used. 5-axis.]
**7.0-stop; Periphery: 7.0-stop. Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=105mm when S-R24105 is used. 5-axis]

Stable videos - Active I.S. technology

• B.I.S.& Dual I.S.
• Boost I.S.
• Active I.S.
• E.I.S.

Suitable for various applications, such as

large

shake

inst

• .

Suitable for various applications such as large camera shake, unstable walking shots, the use of a wide-angle lens and the use of an anamorphic lens.

Videography

8K - 16 times the pixel count of FHD - First time LUMIX 8K video

• 8.1K 17:9 8128 x 4288
• 8K 16:9 7680 x 4320

Proxy Video Recording

Simultaneous recording of a low bitrate proxy file,
linked to the original video for faster
delivery. From production to post-production

. front/rear tally light

Tally lights indicate recording and standby conditions
to the subject and camera operator. Brightness and on/off settings can be customized.

Frame Marker

A frame designed for cropping in post-production. Choose from all aspect ratios: 2.39:1, 2.35:1, 2.00:1, 1.85:1, 16:9, 4:3, 5:4, 1:1, 4:5, 9:16 and Custom.

"New" False Color

Brightness levels can be exchanged with colors for display.

"New" Photo/Video switch

Improved usability for hybrid users.

"New" Shutter Speed Limiter

Sets a minimum limit for the shutter speed to keep it above the video frame rate.

Monitor & Viewfinder

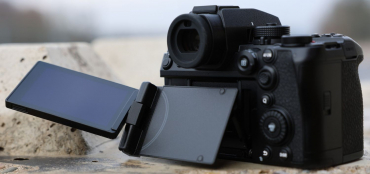

"New" Flip & Swivel Monitor

• Useful for photography - the monitor can be tilted up and down along the optical axis.
• Useful for videography - The monitor can be rotated freely when tilted without interfering with HDMI or USB cables.

High-resolution 5.76 million pixel OLED viewfinder

• The viewfinder offers a resolution of 5.76 million pixels,

making

• it

so sharp and clear

that

• it can

't

• be seen.
• The OLED display offers excellent response speed and reliably captures fast-moving subjects.

"New" shutter with sensor protection

The shutter behaviour when switching off can be selected. The "Close" option protects the sensor from dust and thus ensures safety when changing lenses outdoors. By optimizing the structure of the shutter, the system achieves exceptional rigidity and precision as well as a release number of 400,000*

*Panasonic Messtandard

Robust

• Frost-resistant
• Dust/splash-proof
• Compact, durable housing (magnesium)

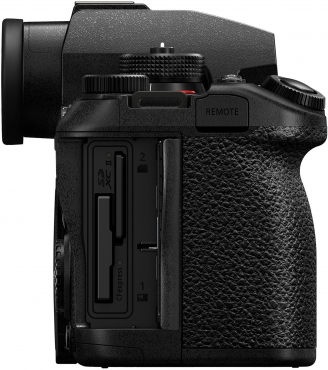

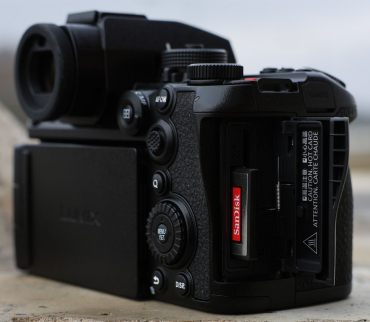

Double card slot

• SLOT 1 - CFexpress type B
• Smooth recording of high-speed continuous shooting
• Internal recording of high bit rate videos of more than 800 Mbps and ProRes RAW HQ
• SLOT 2 - SD UHS-II / UHS-I
• High versatility

USB SSD recording

Ideal for high bit rate recording

• Faster write speed - Direct recording of high bit rate videos is possible.
• More efficient - Connect the SSD to the computer via
  USB, enabling efficient management and editing.
• Better heat management - Better heat resistance than internal recording.
• Budget friendly - Cheaper than memory cards.

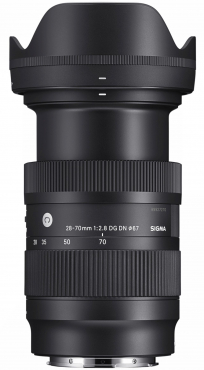

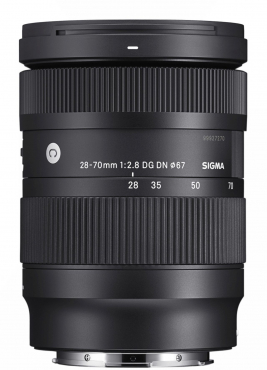

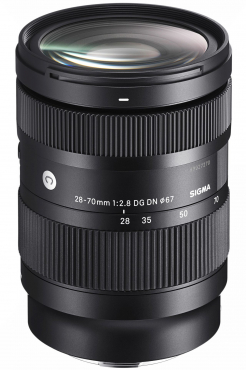

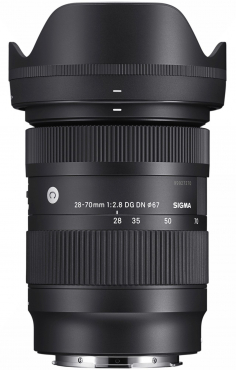

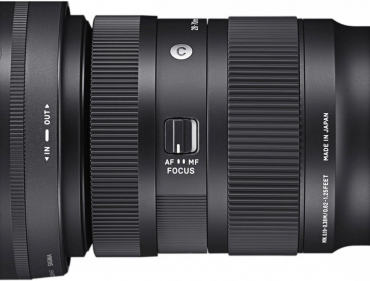

Sigma 28-70mm f2.8 DG DN © for L-Mount

The SIGMA 28-70mm F2.8 DG DN Contemporary redefines the standard Zoom lens for mirrorless cameras: it combines outstanding optical performance and a continuous aperture of F2.8 with a lightweight and compact body.

In terms of design, the 28-70mm F2.8 DG DN Contemporary is based on the 24-70mm F2.8 DG DN Art, but with a focal length range from 28mm. This makes the lens body significantly smaller and lighter, with the same outstanding optical performance.

Lightweight and compact body

Due to the slightly smaller wide-angle range of the 28-70mm F2.8 DG DN Contemporary compared to the 24-70mm F2.8 DG DN Art, the size of the 28-70mm body has been significantly reduced. The concept of the Contemporary product line balances performance and handiness

. The lens has a single, lightweight focusing element, so that the AF unit can also be kept small. Together with a quiet and fast stepping motor, this ensures responsive and virtually silent autofocus performance.

The 28-70mm F2.8 DG DN Contemporary weighs 470g on its own and just 890g together with the lens. At less than 1kg, such an outstandingly light camera system gives photographers an enormous amount of freedom and flexibility to realize their creative visions. It is also a perfect choice for filmmakers looking for a powerful, lightweight and easy-to-handle camera system that also works well with a gimbal and other accessories.

The genes of the Art product line

The optical design of the SIGMA 28-70mm F2.8 DG DN Contemporary is based on the 24-70mm F2.8 DG DN Art, which is known for its outstanding optical performance over the entire focal length range. The 28-70mm F2.8 DG DN Contemporary follows the core concept of the Contemporary product line: it has been designed to offer the right balance of performance and handiness. In a body that is light enough for everyday use, this fast standard Zoom lens thus delivers outstanding image quality to rival the lenses in the Art product line.

Outstanding build quality

Although it is generally accepted that plastic parts are more difficult to guarantee build quality than metal parts, the 28-70mm F2.8 DG DN Contemporary does not compromise on build quality. One reason for this is the use of the special polycarbonate TSC (Thermally Stable Composite), which has a comparable thermal shrinkage to aluminum. This reduces the differences in thermal shrinkage between metallic and non-metallic components, ensuring consistent performance even under extreme temperature fluctuations. The use of polycarbonates in the construction of Zoom and focus rings can make them appear less premium in practice. However, when these parts are carefully machined for precision and adjusted in motion with lubricant, the rings offer precise mechanics with an exceptionally high-quality feel.

Highest optical performance

The 28-70mm F2.8 DG DN Contemporary uses state-of-the-art technology and has a modern optical design comprising three aspherical, two FLD and two SLD elements.

Despite the lower total number of elements than the 24-70mm F2.8 DG DN Art, the design still provides extensive correction of longitudinal color errors and sagittal coma, which cannot be corrected by the camera. This allows users to create images that are consistently sharp from the center to the edge of the shot. In addition to the anti-ghosting design, the Super Multi-Layer and Nano Porous coatings ensure well-controlled stray light formation and therefore high-contrast results even in backlit conditions. The front element of the lens has a water and oil-repellent coating.

The everyday companion

The SIGMA 28-70mm F2.8 DG DN Contemporary offers photographers with a mirrorless camera who require a fast standard Zoom lens an enhanced photographic experience. Its high-quality, intuitive construction makes the lens as exciting to use as the incredible images it can produce - inspiring you to realize its creative potential.

High-quality coating

An ideal lens directs the incoming light through all the elements and onto the sensor. If, on the other hand, some of the light is reflected by individual lenses, not only is the light yield reduced; the reflections within the lens create ghost images and flare spots or reduce the contrast.

To prevent this, the 28-70mm F2.8 DG DN Contemporary uses a Super Multi-Layer Coating (SML) and a Nano Porous Coating, which reduce stray light and ghost images. The result is clear, sharp and high-contrast images without annoying lens flares.
