Panasonic Lumix DC-S1RII + S 20-60mm f3.5-5.6 L-Mount

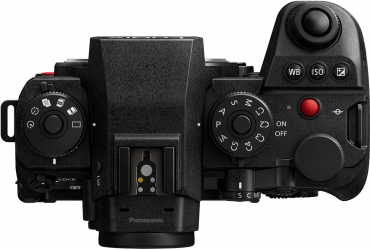

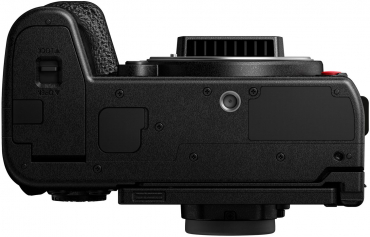

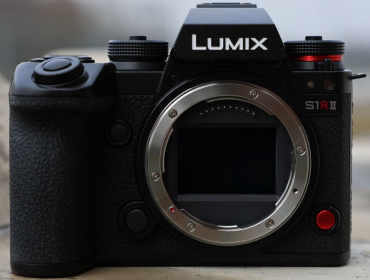

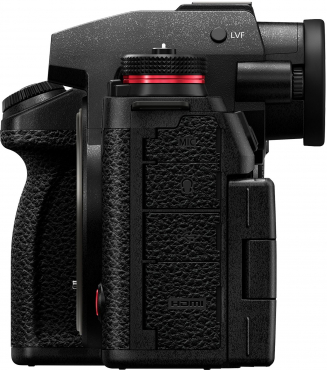

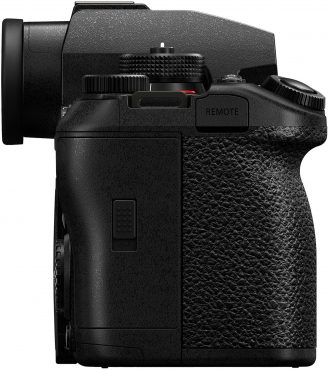

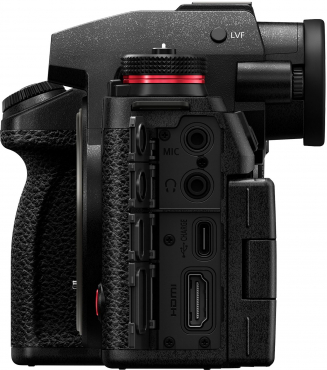

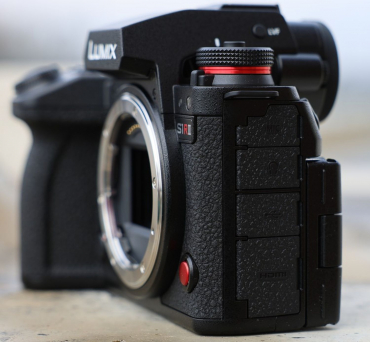

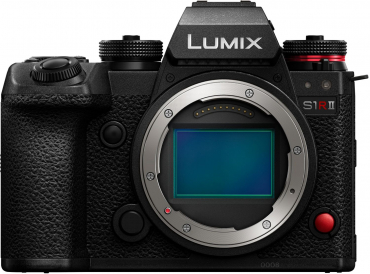

Panasonic Lumix DC-S1RII Body

The LUMIX S1RII features a new 44.3MP BSI CMOS sensor and a high-performance processor with L2 technology to deliver stunning photos and videos with LUMIX's prized natural color reproduction. The High-Res handheld mode even enables photos up to 177MP

, and with its revolutionary video performance, it is the first LUMIX camera to realize 8K video, expanding the possibilities. The popular Open Gate function has been improved to record in 6.4K and even up to 8.1K with a future firmware update. It also supports internal recording of 5.8K Apple ProRes RAW HQ / ProRes RAW to enable high-quality video with minimal setup.

Phase Hybrid AF with real-time detection, now with AI tracking, quickly and accurately recognizes human eyes and faces and smoothly follows a subject's movements. With high-speed continuous shooting of up to 40 fps and AF tracking, dynamic subjects can be captured precisely.

The widely acclaimed image stabilization achieves an internal compensation of 8.0 f-stops and a correction of 7.0 f-stops in the telephoto range with Dual I.S. The video image stabilization offers a new Cropless E.I.S. correction, which reduces

distortion

at

long distances

.

The highest image quality from LUMIX to date brings details to life

New 44.3MP sensor

• Natural, high-resolution rendering
• Natural color reproduction
• High dynamic range (14 stops V-Log/V-Gamut)*
• Highly sensitive images with low noise
  *Dynamic range expansion (log) ON : 14 stops. Dynamic range extension (logarithmic) OFF: 13 f-stops

Latest processor with L2 technology

• Maximizes the performance of high-resolution sensors through high-speed processing
• Achieves both high resolution and

low noise

• .

Achieves

• both

high

• resolution and low noise
• Standard ISO 80-51200 / Extended ISO 40-102400

First-class autofocus with the latest AI technology - Phase Hybrid AF

High-resolution cameras require extremely precise focus.
The LUMIX S1RII features an advanced phase-
hybrid autofocus, which is characterized by high speed, precision
and high tracking performance.

• Phase-detection AF system with 779 metering points
• Improved real-time detection with advanced AI technology
• Improved performance in tracking AF mode

Recognizes, identifies and focuses on a wide range of subjects

• Human - eye/face/body, eye/face
• Animal - body, eye/body
• Car - total subject, main part
• Motorcycle/bicycle - total subject, helmet
• Train - first car, main part
• Airplane - total, nose

Image stabilization for photos and videos

Night shots, Zoom shots, walking shots - all blur-free.

Sharp photos

• 8.0 stops 5-axis B.I.S.* - Provides powerful compensation even at slow shutter speeds.
• 7.0 stops 5-axis Dual I.S. - Provides powerful compensation even at telephoto range where B.I.S. drops off

*8.0-stop; Periphery: 7.0-stop. Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=60mm when S-R2060 is used. 5-axis.]
**7.0-stop; Periphery: 7.0-stop. Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=105mm when S-R24105 is used. 5-axis]

Stable videos - Active I.S. technology

• B.I.S.& Dual I.S.
• Boost I.S.
• Active I.S.
• E.I.S.

Suitable for various applications, such as

large

shake

inst

• .

Suitable for various applications such as large camera shake, unstable walking shots, the use of a wide-angle lens and the use of an anamorphic lens.

Videography

8K - 16 times the pixel count of FHD - For the first time LUMIX 8K Video

• 8.1K 17:9 8128 x 4288
• 8K 16:9 7680 x 4320

Proxy Video Recording

Simultaneous recording of a low bitrate proxy file,
linked to the original video for faster
delivery. From production to post-production

. front/rear tally light

Tally lights indicate recording and standby conditions
to the subject and camera operator. Brightness and on/off settings can be customized.

Frame Marker

A frame designed for cropping in post-production. Choose from all aspect ratios: 2.39:1, 2.35:1, 2.00:1, 1.85:1, 16:9, 4:3, 5:4, 1:1, 4:5, 9:16 and Custom.

"New" False Color

Brightness levels can be exchanged with colors for display.

"New" Photo/Video switch

Improved usability for hybrid users.

"New" Shutter Speed Limiter

Sets a minimum limit for the shutter speed to keep it above the video frame rate.

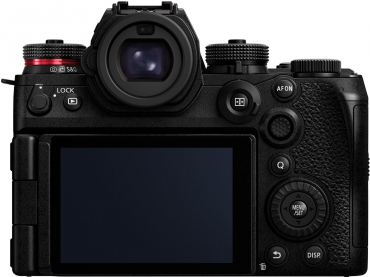

Monitor & Viewfinder

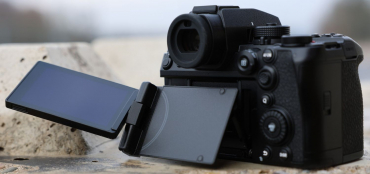

"New" Flip & Swivel Monitor

• Useful for photography - the monitor can be tilted up and down along the optical axis.
• Useful for videography - The monitor can be rotated freely when tilted without interfering with HDMI or USB cables.

High-resolution 5.76 million pixel OLED viewfinder

• The viewfinder offers a resolution of 5.76 million pixels.
• The OLED display offers excellent response speed and reliably captures fast-moving subjects.

"New" shutter with sensor protection

The shutter behaviour when switching off can be selected. The "Close" option protects the sensor from dust and thus ensures safety when changing lenses outdoors. By optimizing the structure of the shutter, the system achieves exceptional rigidity and precision as well as a release number of 400,000*

*Panasonic Messtandard

Robust

• Frost-resistant
• Dust/splash-proof
• Compact, durable housing (magnesium)

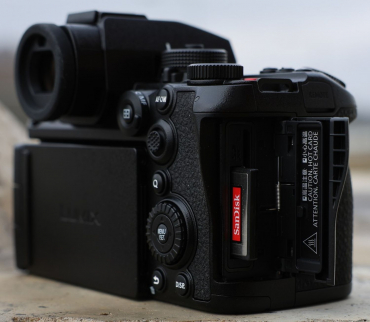

Double card slot

• SLOT 1 - CFexpress type B
• Smooth recording of high-speed continuous shooting
• Internal recording of high bit rate videos of more than 800 Mbps and ProRes RAW HQ
• SLOT 2 - SD UHS-II / UHS-I
• High versatility

USB SSD recording

Ideal for high bit rate recording

• Faster write speed - Direct recording of high bit rate videos is possible.
• More efficient - Connect the SSD to the computer via
  USB, enabling efficient management and editing.
• Better heat management - Better heat resistance than internal recording.
• Budget-friendly - Cheaper than memory cards.

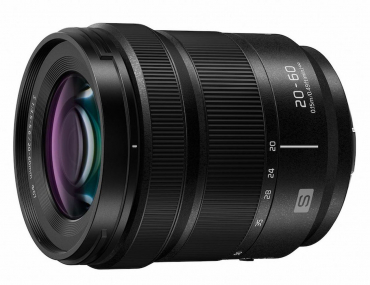

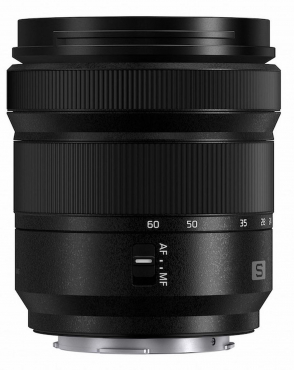

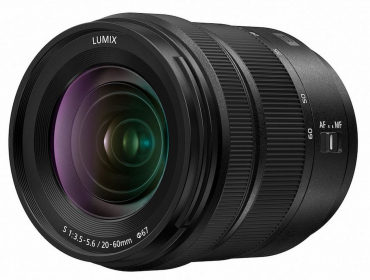

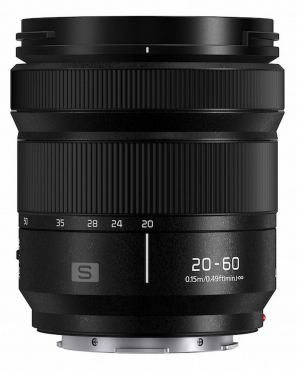

Panasonic LUMIX S 20-60mm F3.5-5.6

The LUMIX S 20-60mm F3.5-5.6 is a rugged, lightweight standard Zoom lens with a focal length of 20mm ultra-wide angle to 60mm for versatile use from dynamic landscape shots to portraits. The wide angle of view also facilitates indoor shooting and the impressive close-up limit of 0.15 m (maximum magnification 0.43x) extends its use in product photography. The LUMIX S Zoom also ensures high-quality video recording by minimizing focus breathing as much as possible.

Thanks to its compact design and low weight of around 350 g, it does not compromise the photographer's mobility. It is characterized by a dust- and splash-resistant design* and can be used in the most adverse conditions down to -10°C. In addition, a fluorine coating on the front element repels water and oil. The filter diameter is 67 mm and the lens has nine blades for a virtually circular aperture.
The lens consists of 11 elements in 9 groups and uses 2 aspherical lenses and 3 ED (Extra-low Dispersion) lenses to suppress both axial chromatic aberration and chromatic magnification difference. Astigmatism can also be corrected with these aspherical lenses, resulting in high resolution performance
. In addition, the UHR (Ultra-High Refractive Index) lens enables uniform image quality from the center to the edges of the image and ensures a compact design.

• L bayonet mount
• Lens speed F3.5-5.6 at 20-60mm focal length
• Compact and lightweight ultra wide-angle zoom
• High quality - high resolution and contrast as well as low distortion
• Robustness: Dust-, splash- and cold-resistant
• Fast and precise autofocus
• Focus breathing minimized
• High-quality construction: 11 lens elements in 9 groups; 2 aspherical, 3 ED and one UHR lens, fluorine-coated
