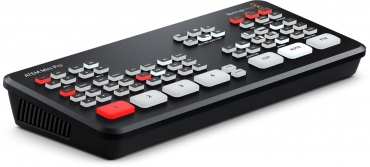

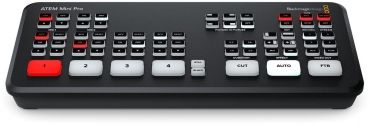

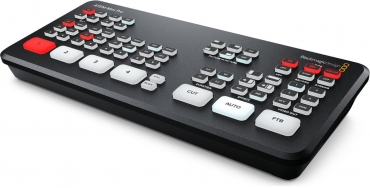

Blackmagic Atem Mini Pro Video Mixer

Blackmagic Atem Mini Pro Video Mixer

Blackmagic Design has introduced the ATEM Mini Pro, a new live production mixer that brings the features of the ATEM Mini along with additional recording, streaming and monitoring capabilities:

- Direct streaming via Ethernet using RTMP (for example to YouTube Live, Facebook or Twitch).
- Direct H.264 recording to external storage media via USB port
- Multiview monitoring

Both ATEM Mini Pro and ATEM Mini offer the following features:
- The USB port masks the video signal as a webcam source, enabling livestreams with outstanding image quality.

- Video inputs: 4x HDMI (type A, with integrated standard converters)
- Audio inputs: 2x 3.5mm stereo jack
- Video outputs: 1x HDMI (type A), 1x USB (type C)
- For signals up to 1080p60
- Supports live streaming on video platforms like YouTube
- Video effects (swipes, picture-in-picture, etc.)
- Audio keys for live mixing of audio (audio mixer supports limiter, compressor, 6-band equalizer and more)
- ATEM Advanced Chroma Keyer for working with green and blue screens

Via the latest Camera Update 6.9, both models also support remote control of Blackmagic Pocket Cinema Cameras (4K and 6K) via HDMI.
This allows the cameras to be used remotely as studio cameras.

Blackmagic Design's ATEM Mini Pro is fixed setup and easy to use. Its features include four scalable HDMI inputs, a USB webcam output, an HDMI output, and a Fairlight audio mixer with EQ and dynamics tools, a DVE processor for picture-in-picture displays, transition effects, a green screen chromakeyer, and a 20-frame media pool for titles. On top of that, ATEM Software Control is included free of charge.

Connections:
Total video inputs: 4
Total video outputs: 2
Aux outputs total: 1
Total audio inputs: 2 x 3.5mm stereo minijacks
Total audio outputs: none, embedded audio only
Timecode connections: none
HDMI video inputs: 4 HDMI type A; 10-bit HD, switchable. 2 embedded audio channels Video inputs with resync On all 4 HDMI inputs Frame rate and format converters On all 4 HDMI inputs.
HDMI program outputs: 1
Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates, and to connect a control panel directly or via a network connection
Computer interface: 1 Generation 1 USB Type C 3.1 port for recording to external hard drives and for webcam output, software control, software updates, and to connect a control panel

Standards:

• HD video standards for input 720p/50; 720p/59.94; 720p/60 1080p/23.98; 1080p/24; 1080p/25; 1080p/29.97; 1080p/30; 1080p/50; 1080p/59.94; 1080p/60 1080i/50; 1080i/59.94; 1080i/60

• HD video standards for output 1080p/23.98; 1080p/24; 1080p/25; 1080p/29.97; 1080p/30; 1080p/50; 1080p/59.94; 1080p/60

• Ultra HD video standards: none

• Video sampling frequency 4:2:2 YUV

• Color accuracy: 10 bit

• Color spaces: Rec.709

• HDMI input resolution from computers: 1280 x 720p 50 Hz, 59.94 Hz and 60 Hz 1920 x 1080p 23, 98, 24, 25, 29.97, 30, 50, 59.94 and 60 Hz 1920 x 1080i 50, 59.94 and 60 Hz

• Color space conversion: hardware based in real time

• Audio mixer: 6 inputs x 2 channel mixer. Channel-by-channel preset for audio-follow-video on or off, plus separate gain control for each channel. Level and peak level metering. Plus new Fairlight audio functions: Compressor, gate, limiter, 6-band parametric EQ. Main gain control

Streaming:
Direct streaming - the ATEM Mini Pro supports direct live streaming via Ethernet using Real Time Messaging Protocol (RTMP).

Recording:
Direct recording: 1 Generation 1 USB Type C 3.1 port for direct recording of H.264 files with AAC audio in MP4 format to external storage media in the ATEM's video format.
Storage media format - formats media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems

Multi View Monitoring:
Multiview monitoring: 1x 10 views including left and right configurable program/preview display, 4 HDMI inputs, media player, streaming status, recording status, and audio level meters
Multiview video standard: HD media player media player 1 channels fill-and-key for each media player media pool capacity for still images 20 with fill-and-key media pool still image formats PNG, TGA, BMP, GIF, JPEG and TIFF

Control system:
Control desk or panel: Integrated desk-type control panel. Software control panel with camera control function included. Supports optional hardware control panel.

Control panel port: Ethernet supports 10/100/1000 BaseT. The Ethernet port is used to connect a console directly to the mixer or via network connection. ATEM Mini Pro also supports a
direct USB-C connection. Software updates via Ethernet or USB-C

Control panel or console: Includes ATEM Software Control.

Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel control panels.
Operating software included: Free included ATEM Software Control Panel for Mac 10.14 Mojave, Mac 10.15 Catalina or higher and for Windows 10 in 64 bit only.
